Eco friendly High Lumen LED underground lights / lighting for Football field Stage

SHENZHEN ZLONE LIGHTING CO.,LTD

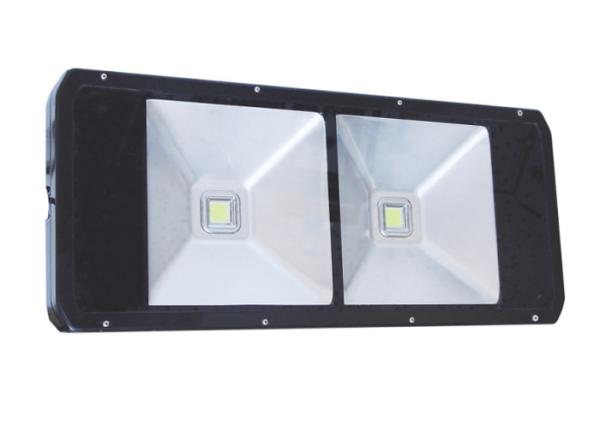

Eco friendly High Lumen LED underground lights / lighting for Football field Stage

  • 1
  • 2

Brand Name : ZLONE

Model Number : ZL-TL920-240W

Certification : CE/ FCC/ SAA

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs/week

Delivery Time : 5-7 working days

Packaging Details : Packing Size: 1000*370*275mm 1pcs/Carton N.W:18.9kg/pcs G.W:23.1kg/pcs

Item No. : ZL-TL920-240W

Led : Bridgelux COB Chip 45MIL

Size : 920*285*93mm

Lumen : 24000-26400LM

IP : IP65

CRI : 78

Driver : Meanwell

Warranty : 5 years

Contact Now

Eco friendly 240W LED Tunnel Light Led Flood Light High Lumen for Football field Stage​

Competitive Advantages

  • Own Moudel, Patented Product;
  • Select Tempered Glass for Lamp Cover, High Transmittance;
  • Constant Current and Voltage Driver, American Bridgelux COB, Stable and Durable;
  • Integrative Die-casting aluminum Heat-sink, Cooling Body Design, Effected Heat Dissipation;
  • Wide Wattages Available;
  • Never Rust Stainless Steel Screws;
  • IP65. Waterproof, Dustproof;
  • 5 Years Warranty.

240W Led Tunnel Lights Parameters

Parameters

Model

ZL-TL920-240W

Voltage

85-265VAC 50/60Hz

Power

140W

Power Factor

>0.95

Color Temperature

2800-7000K

Color Rending Index

>75

Luminous Flux

24000-26400LM

Luminous efficiency

85lm/w

LED Brand

CREE/Bridgelux

Driver

Meanwell

Material

AL+PC

Working life

50000 hours

Warranty

5 years

Size(mm)

920*285*93mm

Gross Weight

N.W:18.9kg/pcs

Fixture color

Black

IP Rating

IP65

MOQ

1PCS

Working Temperature

-40-60

Certification

CE/ROHS

Lead time

one week for 5000pcs

Features

1, CE and RoHS approved. UL Driver available.

2, Die-casting aluminum casing and high intensity toughened glass cover

3, High efficiency and power factor LED driver

4, Wide radiation angle, huge lighting area

5, Start without delay and flicker free

6, Good color rendering

7, Warm and cold color temperature are available

8, High shock & vibration resistant

9, Ideal heat dissipation design

10, No UV & IR, No Blinking and No Mercury & Lead free

11, Patented fixture design and Led package technology

12, Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light

240W Led Tunnel Lights Specifications:

  1. Warranty: 5years
  2. CE/ Rohs/ VDE/ SAA standard
  3. Power Consumption :4x60W
  4. LED Chip: Bridgelux
  5. Luminous Efficiency: 100-110lm/w
  6. Colour Temperature: 2700-7000K
  7. Input Voltage: AC100-265V
  8. CRI: >Ra75
  9. IP 65

Applications:

Tunnel

Highway

Railway

Subway

Metro

Eco friendly High Lumen LED underground lights / lighting for Football field Stage
